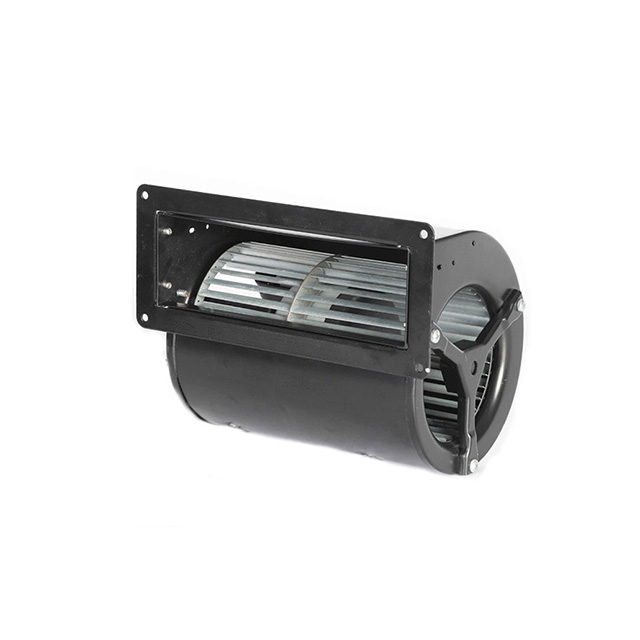

133 Direct Drive Centrifugal Fan Centrifugal Blower

Centrifugal Fan Blower Model: 133
AC centrifugal fan blower motor phase: 1
Types of centrifugal blower: forword curved
Centrifugal blower motor power: 90W / 150W / 200W
Centrifugal blower design: low pressure centrifugal blower
Thermal Protection of centrifugal blower motor: Automatic
centrifugal blower partscentrifugal blower wheel / impeller, motor, scroll
  • 133

  • CPMDJ

Availability:
Quantity:

Centrifugal Blower Description

Centrifugal blower fans is developed and manufactured with internationally advanced. It was developed by using high technology and with low noise and compact structure, which was specially designed for the air-conditioning. The flow rate and total pressure range of centrifugal inline blower are from 800m³/h to 2000m³/h. Centrifugal air blower is the ideal subsidiary equipment for various heat exchanger, cabinet central air conditioning unit, changeable air conditioners, tube unit, VAV system, heating ,cleansing and other kind of ventilating system.



Technical Data of Centrifugal Fan


Norminal Sizes Ranges :

Forward centrifugal blower

Norminal Voltage :

AC Motor - AC Input: 115v,220v,230v,380v,400v

BLDC Motor - DC Input: 12v,24v,48v,310v

ECM Motor - AC Input: 210v,220v,230v,380V

Power Input Ranges:

47W, 60W, 70W, 260W ( 3 SPEEDS)

Air Flow Ranges :

200m³/h, 270m³/h, 320 m³/h,960 m³/h

Speed Ranges

1450 RPM  / 950-1250-1450

Protection Class :

IP44

Insulation Class :

B

Min. amb. temperature :

-25℃

Max. amb. temperature :

+60 ℃

Speed control options

1 speed , 2 speeds ,or 1-3 speeds adjustable

Mainly Applications :

· Electronic cabinet cooling
· Clean room modules
· Heat exchangers
· Air filtration systems
· Military HRAC
· Pharmaceutical/biological control systems
· Computer room air conditioning (CRAC) systems
· Air-handling units


Centrifugal blower is also known as centrifugal fan or squirrel cage fan. A centrifugal blower is a mechanical device used to move air or gas. Based on the centrifugal blower design, air or gas can move in a specific direction at a specific angle. Centrifugal blower accessories typically include a centrifugal blower motor, centrifugal fan wheel and centrifugal blower scroll casing. The centrifugal fan scroll housing is used to direct the air out in a specific direction. Our centrifugal blowers for duct applications move air from the rotating inlet to the outlet of the centrifugal blower. They draw air through a ductwork/heat exchanger, or push it through a similar impeller.



Centrifugal Fan Design


Centrifugal blower consists of centrifugal blower steel housing, centrifugal blower fan wheel, base plate and centrifugal blower motor.


1.  Centrifugal Blower Housing Design


The centrifugal blower housing is made of hot galvanized steel sheet. The side plates include inlets cones that are designed with the best aerodynamics for inlet condition. The centrifugal blower housing is fixed to the side plates by spot welding. On the side of the centrifugal fan housing there are a series of holes drilled in advance for riveting nuts to carry out installation according to air outlet direction needed by the customer.


2. Centrifugal Blower Wheel


Forward curved centrifugal fan impeller is constructed of high-grade hot galvanized steel sheet with the advanced aerodynamics profile to achieve the highest efficiency and the lowest noise level. The centrifugal fan wheel is fixed on the center plate and on the end ring with riveting grip pres. The centrifugal blower wheel is constructed with maximum strength that endures the continuous operation with maximum power.


3. Centrifugal Fan Frame


Base plates of centrifugal blower fan are made of high-quality galvanized steel sheet, which can be assembled with the direction by the customer demand.


4. Centrifugal Blower Motor

Centrifugal blower motor can be single-phase AC motors of 220V/50HZ, 110V/60HZ with 3 speeds, to make an AC centrifugal blower fan OR EC motors with three speeds to make an EC centrifugal blower fan, which are flexible to change speed and easy to install. Speed can be changed by using provided silicon controlled voltage regulator and frequency converter.



Centrifugal Blower Specifications Sheet


centrifugal blower performance curvecentrifugal fan performance curve


Size of Centrifugal Blower Fan


centrifugal fan centrifugal blower sizecentrifugal fan centrifugal blower size from china centrifugal fan factory manufactuers suppliers

Centrifugal Fan Manufacturer


Centrifugal Blower Manufacturers & Factories & Suppliers



Technician and manufacturing experts will work with you to implement any centrifugal inline blower design ideas and needs you have and bring them to reality. We additionally offer centrifugal air blower samples for you to test and approve before we begin manufacturing your personalized direct drive centrifugal blower.


If you are seeking for dual centrifugal blower factorycentrifugal blower fan factories & manufacturers & suppliers, you have come to the right ac centrifugal blower, dc centrifugal blower, ec centrifugal blower website. OR, if you want to know centrifugal blower designcentrifugal blower dimensions, please just feel free to contact CPMDJ, for centrifugal blower quotes


CPMDJ china wholesale centrifugal fan centrifugal blower factories SUPPLIERS MANUFACTURERS SUPPLIERS
