AC Motor for Korean Food Waste Disposer

AC Motor for Korean Food Waste Disposer, Korean food Garbage Disposer use motor.
  • YDK78-40-6

  • CPMDJ

Availability:
Quantity:

Product Description


AC motor for Korean Food Waste Disposer - Structure


AC motor for Korean food waste disposer is not that complicated, referring to its structure. Korean food waste disposer Motor from CPMDJ consist of a stator and contain a rotating rotor inside, which is surrounded by pole-pieces. All our motors for food waste disposer comply with the appropriate International Standards as far as: food waste disposer Motor output, food garbage disposer motor performance and dimensions of food waste disposer motor replacement.


Korean Food Garbage Disposer Motor Models



Model Voltage(V) Frequency(Hz) Output(W) Capacitor poles
YDK78-40-6 220 60 40W 1μF 6


Korean Food Waste Disposer Motor Solutions


At Changzhou Changpeng Motor Co.,Ltd, you always have a personal contact who will be happy to advise you and answer your questions about the best Korean food waste disposer Motor solution for your application - quickly and competently. High-quality technical production and processing systems and the handling of qualified, experienced engineers and skilled workers guarantee you the highest food garbage disposer standards. Additionally, all of our Korean food waste disposer motors comply with current ISO standards.


Motor for Korean food garbage disposer


Korean Food Waste Disposer Fan Motor Manufacturer & Factory & Supplier


If you are seeking for food garbage disposer fan motor factory & manufacturers & suppliers china, you have come to the right food waste disposer motor website. Please just feel free to contact CPMDJ, the food garbage disposer fan motor supplier china. Our food garbage disposer fan motors are asynchronous ac fan motors, on the other hand, is in a separate AC motor class because of the differences in design and operational characteristics. Changzhou Changpeng Motor Co., Ltd offers a robust catalog of Korean food waste disposer motors made by our fan motor factory & manufacturers that can be tailored to your exact specifications of food garbage disposer motors. Our heater motors are much popular in Korean market, etc.


CPMDJ CHANGZHOU CHANGPENG MOTOR CO.,LTD FAN MOTOR SUPPLIER FACTORY MANUFACTURERS SUPPLIERS -HVACFANMOTOR.COM


Korean Food Waste Disposer Motor Test & Image


Routine testing and type tests for all food waste disposer motor

Process flow - routine, type, and system testing


The type test for asynchronous fan motors contains the following test steps:

  • Visual inspection

  • Resistance measurement of stator winding at ambient temperature

  • Insulation resistance measurement of stator winding and accessories

  • High-voltage check of stator winding

  • Rotational direction check

  • No-load check at partial voltage

  • Heating test under load

  • Measurement of load characteristic (25%, 50%, 75%, 100%, and 125% load)

  • Bearing heating check at no load and rated speed (only for friction-type bearing machines)

  • Check of fan motor accessories

  • Measurement of ripple voltage at rated voltage, rated frequency, and no-load speed

  • Creation of test report


In addition, the following optional tests are possible for asynchronous fan motors:


  • Measurement of no-load characteristic (recording of no-load current and no-load power at differing voltage)

  • Measurement of short circuit characteristic (recording of short circuit current and short circuit power at differing voltage)

  • Determination of polarization index of stator winding

  • Noise measurement (only at no load)

  • System/routine/type test of asynchronous fan motors



desert cooler fan motor test air cooler fan motor factory manufacturers suppliers


The routine test for asynchronous capacitor start fan motors contains the following test steps:

  • Visual inspection

  • Resistance measurement of stator winding at ambient temperature

  • Insulation resistance measurement of stator winding and accessories

  • High-voltage check of stator winding

  • Rotational direction check

  • No-load check at rated voltage

  • Short-circuit test at partial voltage

  • Check of fan motor accessories

  • Measurement of ripple voltage at rated voltage, rated frequency, and no-load speed

  • Creation of test report


In addition, the following optional tests are possible for asynchronous fan motors:


  • Measurement of no-load characteristic (recording of no-load current and no-load power at differing voltage)

  • Measurement of short circuit characteristic (recording of short circuit current and short circuit power at differing voltage)

  • Determination of polarization index of stator winding

  • Noise measurement (only at no load)

  • Type testing of asynchronous fan motors, with heat run

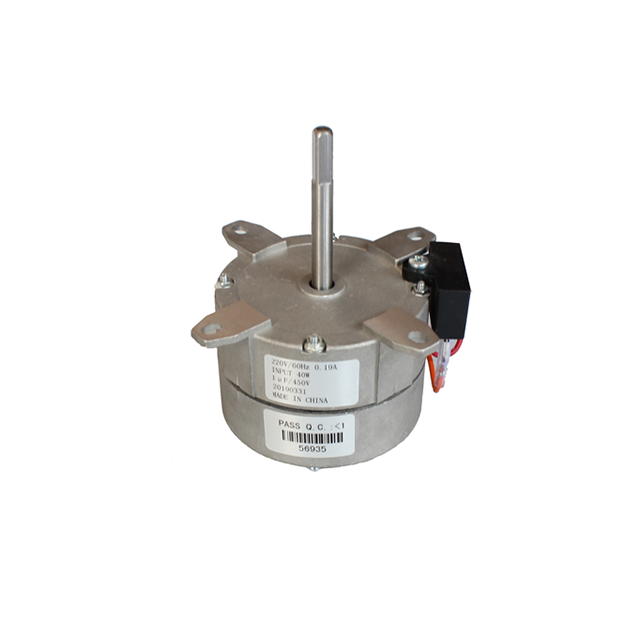

YDK78-40-6 AC Motor for Korean Food garbage Disposer from fan motor manfuacturer factory supplier
