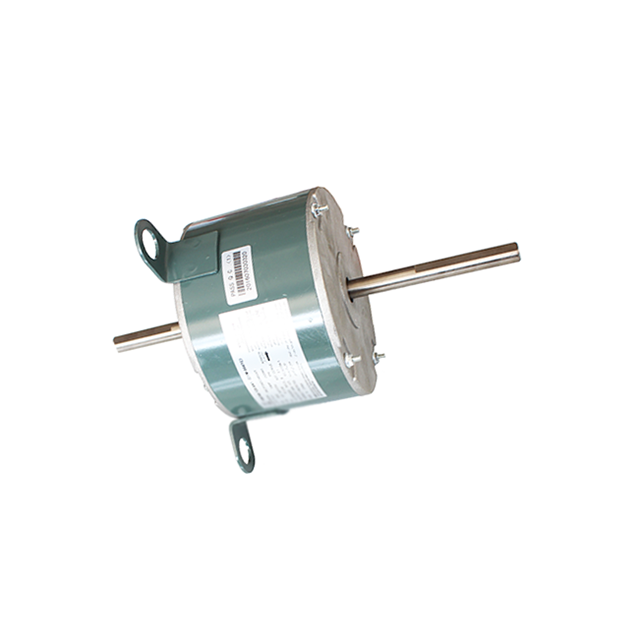

EMERSON K55HXPKG-5158 YSK140-120-6A6 Air Conditioning HVAC Condensor Fan Motor

Air Conditioner Motor Manufacturer Model #: EMERSON K55HXPKG-5158 YSK140-120-6A6

Thermal Protection: Automatic
air conditioner motor Phase: 1
OEM Direct Replacement Motor
air conditioner fan motor Dia: 139mm
Maximum Ambient Temperature: 70° C
Insulation Class of room air conditioner motor: B
Voltage of fan motors for air conditioners: 220-240V
Frequency of window air conditioner fan motor: 50Hz/ 60Hz
Permanent Split Capacitor (PSC) fan motor for room air conditioner
Speeds of Air Conditioning Condenser Fan Motor: rpm as your request
  • EMERSON K55HXPKG-5158 YSK140-120-6A6

  • CPMDJ

Availability:
Quantity:

Product Description

ac air conditioner fan motor manufacturer & supplier & factory china


Our air conditioner motors are designed to offer great service to all our customers to ensure they help boost your business. We create quality air conditioner fan motor that are applicable in different ways to give you flexibility and an advantage in the market. Our window air conditioner fan motors are designed to be applicable to different window air conditioner units. They can be used to in various markets, like Saudi Arabia, UAE, Dubai, Bahrain, Iraq, Sudan, Iran, Kuwait, Jordan, Oman, Yemen, etc. Getting window air conditioner fan motor wholesale price from china ac motor cooling fan supplier & fan motor manufacturer - Changzhou Changpeng Motor Co.,. Ltd gives you a greater advantage.


Being a fan motor manufacturer, Changzhou Changpeng Motor Co.,. Ltd start its business since 2005 and is able to produce hundreds of different air conditioner types with different power, rpm, size, shaft diamention, shaft length, color... Our fan motors are high quality, low temperature rise and low vibration with low noise. As we offer different designs for our air conditioner condenser fan motor and other fan motor for ac unit, they are ideal for fan motor replacement purposes.


Air Conditioner Motor Type


MODEL VOLTAGE Hz Power speed ROT OEM model
YSK140-120-6A1 208-230 50/60 1/6HP 1000/2SPD CW-LE 5KCP39DGM511T
YSK140-120-6A3 208-230 50/60 1/6HP 1095/3SPD CCW-LE 5KCP39DGM004T
YSK140-120-6A6 208-230 50/60 1/6HP 1050/3SPD CW-LE K55HXPKG-5158
YSK140-120-6A5 208-230 60 1/6HP 1050/3SPD CW-LE F48AB33B38
YSK140-120-6A 208-231 50/60 1/6HP
CW-LE KFC6T-121SF5P
YSK140/30-4-150-1 220 50 1/4HP 1200/3SPD CW/CCW
YSK140/30-4-150-2 220 50 1/5HP 1200/3SPD CW/CCW
YSK140-150-4A 208-230 50/60 1/5HP 1350/3SPD CCW-LE KA55HXNGT-9416C
YSK140-150-4A2 208-230 50 1/5HP 1360/3SPD REVERSIBLE PM410542
YSK140-150-4A3 208-230 50 1/5HP 980/3SPD CCW-LE PM410538
YSK140-150-4A2 208-230 50 1/5HP 1170/3SPD CCW-LE 00BEM 20903
YSK140-150-4A3 208-230 50 1/5HP 1115/3SPD CW-LE 022 8101 461B
YSK140-150-6A8 208-230 50 1/5HP 1115/3SPD CCW-LE 5KCP39FGM4440
YSK140-150-6A4 208-230 60 1/5HP 1075/3SPD CW-LE 5KCP39FGM672S
YSK140-150-6A2 208-230 60 1/5HP 1100/2SPD CW-LE 5KCP39FGM639T
YSK140-150-6A9 208-230 60 1/5HP 1115/3SPD CW-LE F48U01A30
YSK140-150-6A7 208-230 60 1/5HP 1100/3SPD CCW-LE K55HXLEK-5966
YSK140-150-6A1 208-230 50/60 1/5HP 1075/3SPD CW-LE 5KCP39HGS635S
YSK140-150-6A5 208-230 60 1/5HP 1050/3SPD CW-LE F48533B38Y
YSK140-150-6A 208-230 60 1/5HP 1050/2SPD REVERSIBLE K55ZZEHN-4921
YSK140-150-6A3 208-230 50/60 1/5HP 925/3SPD CW-LE 022 8101 485B
YSK140-150-6A10 208-230 50/60 1/5HP 1115/3SPD CW-LE F48AB49B38
YSK140-180-6A 208-230 60 1/4HP 1075/3SPD CCW-LE 5KCP39FG5829ET
YSK140/35-4-185-1 220 50 1/4HP 1300/3SPD CW/CCW
YSK140/35-4-185-2 220 50 1/4HP 1300/3SPD CW/CCW
YSK140-185-4A5 230 50 1/4HP 1360/3SPD REVERSIBLE PM4104188
YSK140-185-4A6 230 50 1/4HP 1070/3SPD CCW-LE PM4104125
YSK140-185-4A2 220-240 50 1/4HP 1100/3SPD CW-LE 022 8101 403B
YSK140-185-4A2 220/380 60 1/4HP

SK-AC-300
YSK140-185-4A3 208-230 50/60 1/4HP 1300/3SPD CW-LE
YSK140-215-4A 220-240 50 215W 1350/3SPD CW-LE 024T04030-00
YSK140-245-4A1 220-240 50/60 1/3HP 1335/3SPD CW-LE PM410395
YSK140-245-4A31 220-240 60 1/3HP 1360/2SPD CW-LE
YSK140-245-4A35 220-240 50/60 1/3HP 1335/3SPD CW-LE 022 8101 423B
YSK140-245-4A39 220 60 1/3HP 1335/3SPD CW-LE F48S69A30
YSK140-245-6A1 208-230 50/60 1/3HP 1120/3SPD CCW-LE 5KCP39HGM307ATC
YSK140-245-6A4 208-230 60 1/3HP 1090/2SPD CCW-LE 5KCP39FGM291TC
YSK140-245-6A2 208-230 50/60 1/3HP 1115/3SPD CW-LE F48569A30-MOD
YSK140-245-6A4 208-230 50/60 1/3HP 1075/3SPD CCW-LE
YSK140-370-4A 220-230 50/60 1/2HP 1430/5SPD
4-010-1557/1
YSK140-375-6A1 208-230 60 1/2HP 1075/3SPD CCW-LE K55HXSPL-3136


Why get GE Window Air Conditioner Fan Motor Replacement from Us?


We Respond to Your Inquiry Within 12 Hours

We understand that time is an invaluable resource for your business and thus fast service delivery is important. Our short response times aim to provide easy access to our services.


We Deliver Customized Air Conditioner Motor Designs

Our objective is to deliver a customized air conditioner fan motor design that meets all your requirements. We aim to bring your vision to life because customer satisfaction is important to us.


We Fulfill Efficient Air Conditioning Fan Motor Manufacturing

The CPMDJ fan motor factory is fitted with ultra-modern machinery to ensure that we efficiently manufacture high-quality window air conditioner motor. It also enables us to produce in bulk within short turnaround times.


We Offer Custom Air Conditioner Fan Motor Packaging

When you come to us with ac fan motor packaging needs, we strive to fulfill them. We have some in-stock designs that you can choose from or we could explore customization.


Air Conditioner Unit Motor Structure


Air conditioner unit motor is not very complicated in construction. fan motor air conditioner from CPMDJ consist of a stator and contain a rotating rotor inside, which is surrounded by pole-pieces. All our central air conditioner motor, window air conditioner fan motor, portable air conditioner fan motor and fan motor replacement for air conditioner comply with the appropriate International Standards as far as: air conditioner motor output, air conditioner fan motor performance and air conditioner blower motor dimensions.


Window air conditioner Fan motor is the main component for window type A/C unit operation. The room air conditioner motor drives the fan blade of air conditioner. Fan motor for room air conditioner must be running well for the air conditioning unit to do its job. This is important for moving hot air to the outside of the building, as well as blowing cool air through the ductwork and into the rooms. Air conditioner fan motor, window air conditioner fan motor from air conditioner motor suppliers & manufacturers china, window air conditioner fan motor factory & supplier & manufacturers - Changzhou Changpeng Motor Co., Ltd are mainly asynchronous single-phase capacitor start air conditioner motors. There is an external capacitor connected in air conditioner fan motors with the START wiring.

Air Conditioner Motor Suppliers & Manufacturers


Air Conditioner Motor Factory


Window air conditioner fan motor from china manufacturer, Changzhou Changpeng Motor Co.,Ltd aims to produce window air conditioner fan motor that can accommodate each of our customer's different needs. Aside from being a window air conditioner fan motor manufacturer & supplier, we also produce various fan motors that are ideal for HVAC industries. We have pre-designed window air conditioner  motor that you can choose from but if you have special requirements for your fan motors, we can customize air conditioner fan motor for you. We can design them to match your branding and help you boost your sales.


We assign teams of design, technician and manufacturing experts to each of your order. They will work with you to implement any air conditioner condenser fan motor design ideas and needs you have and bring them to reality. We additionally offer free samples for you to test and approve before we begin manufacturing your personalized air conditioner blower motor.


CPMDJ performs all air conditioner fan motor manufacturing processes in-house and our team of staff is well-versed in each motor manufacturing step. This makes it possible for us to customize your air conditioning motor to meet your packaging needs. Whether you need a special type, size, color, an unusual rpm, or a special performance, we have what it takes to make it happen.


Changzhou Changpeng Motor Co.,Ltd has been working as a trustworthy china ac motor manufacturer and supplier for near 20 years. With our years of experience in this fan motor industry, we can guarantee the production of high-quality Chinese window fan motors for air conditioners. Aside from manufacturing air conditioner fan motors in our fan motor factory, we also offer customization and design services to our customers. We have ac fan motors in a variety of power, speed, size and application. If you are looking for a reliable ac fan motor suppliers & manfuacturers, you can rely on CPMDJ. Buy window air conditioner fan motor in whole price from us and let us help you grow your business using our customizable and affordable fan motors.


CPMDJ CHANGZHOU CHANGPENG MOTOR CO.,LTD FAN MOTOR SUPPLIER FACTORY MANUFACTURERS SUPPLIERS -HVACFANMOTOR.COM

Air conditioner fan motor manufacturing processes


To offer such a wide range of air conditioner motor, central air conditioner motor, window air conditioner motor, CPMDJ expent huge manual work, skill and years of experience. Furthermore, Changzhou Changpeng Motor Co., Ltd has dipping equipment and drying kilns with shaft heights up to 800 mm, an in-house welding shop for flexible production of special components and custom welding designs, VPI dipping equipment and experienced specialists who truly understand their processes. This is how CPMDJ guarantee you the high quality, reliability and durability of room air conditioner motor.


1. STATOR CORE & ROTOR CORE


Stator core and rotor core for fan motor from air conditioner motor manufacturers are built up of thin punched laminations of Silicon Steel, its stator laminations and rotor laminations are made by high speed punch machine which is invested by our own, and this plays a vital role in quality of ac fan motor. Over 10 Million press strokes per day allows output of over 100 Tons finished stator / rotor core laminations each day.

stator-core-and-rotor-core-for-fan-motor for air cooler motor factory manufacturers suppliers
motor-manufacturing-processes coil winding for air cooler motor factory manufacturers suppliers

2. COIL WINDING


Professional in the air conditioner fan motor technology, team from window air conditioner fan motor manufacturers has extensive experience working with both copper and aluminium wire in various forms to provide coil winding solutions. Our broad customer base demands that we cannot only supply our standard range of air conditioner fan motor but also have the capability to provide custom solutions to solve challenges others can't. Contact your fan motor manufacturers now!

3. STATOR ASSEMBLY


Changpeng Motor Co., Ltd, china ac condenser cooling fan manufacturer, has specialized in air conditioner motor technology, stator assembling can be solved by our own professonal assembly technique. It meets the requirements of series production in ac fan motor, condenser fan motor, evaporator fan motor and other fan motor for ac unit. We develop and examine the entire process chain - from slot insulation to impregnating the stator and test.

motor-manufacturing-processes stator assembly for air cooler motor factory manufacturers suppliers
rotor-assembly-of-fan-motor from fan motor manufacturers suppliers factory

4. ROTOR ASSEMBLY


Rotor assembly is critical to fan motors for air conditioners in a variety of industries and applications, like condenser, air conditioner, evaporator etc. CPMDJ, china ac motor cooling fan manufacturer provides high quality silicon steel material to create professional and high quality rotor assembly for all AC fan motors. A rotor assembly of ac fan motor normally includes a cylindrically shaped shaft, a processed rotor iron core and a bearing.

5. FAN MOTOR SHAFT


Motor shaft is the main component in electric fan motor. The size of the shaft significantly affects the torque in fan motor. In addition to the need to mount the rotor and a variety of attachments, like bearing, the model of the motor shaft is based on the cooling concept selection of the electric device. CPMDJ, china ac motor manufacturer always offer you high quality shaft as air conditioner fan motor parts.

motor-shaft for air cooler motor factory manufacturers suppliers
fan motor test in fan motor manufacturer suppliers manufacturers - cpmdj

6. MOTOR ASSEMBLY & TESTING


Motor assembly includes assembling stator assembly, rotor assembly and end cover assembly with front cover. Testing of air condition motor from air conditioner motor suppliers china, Changpeng Motor, cover the whole areas from stator insulation test, electronic integrated test bench for winding inserting, motor integrated test bench, motor performance test, noise test and appearance detection through to dynamometer for high performance fan  motor testing.


Air conditioner motors meet the most demanding quality requirements


As a ac condenser fan motor factory & manufacturer, CPMDJ offers air cooler motors, air conditioner fan motors, indoor fan motors, outdoor fan motors, window AC fan motors, condenser fan motors, general purpose fan motors, fan coil motors, heat pump fan motors, resin Packing motors, EC fan motors, AC centrifugal fans and EC centrifugal fans. We quickly and reliably meet your custom requirements. You can always rely on the proven CPMDJ quality. High-quality technical production and processing plants, as well as the handling of qualified and experienced engineers and specialists ensure the highest standards of air cooler motors. To maintain quality standards, Changpeng Motor has introduced a quality management system.


Needless to say, our fan motor for room air conditioner meets the requirements of international standards and state-of-the-art technology. This is how we ensure global use and durability of ac fan motors.

Be Agency of Fan Motor Factory

Why be our agency of fan motor?


As a prominent and leading air conditioner motor suppliers & manufacturers china, Changpeng motor is willing to open worldwide market by agency. Be our agency, you can extend your business fast for your fan motors at the competitive price, stable qualtity and excellent after service. Contact your air conditioner fan motor factory to get air conditioner fan motor price now!


be agency of china fan motor manfuacturers factory suppliers- changpeng motor

Air Conditioner Motor Test & Applications

Routine testing and type tests for all AC fan motor

Process flow - routine, type, and system testing


The type test for asynchronous fan motors contains the following test steps:

  • Visual inspection

  • Resistance measurement of stator winding at ambient temperature

  • Insulation resistance measurement of stator winding and accessories

  • High-voltage check of stator winding

  • Rotational direction check

  • No-load check at partial voltage

  • Heating test under load

  • Measurement of load characteristic (25%, 50%, 75%, 100%, and 125% load)

  • Bearing heating check at no load and rated speed (only for friction-type bearing machines)

  • Check of fan motor accessories

  • Measurement of ripple voltage at rated voltage, rated frequency, and no-load speed

  • Creation of test report


In addition, the following optional tests are possible for asynchronous fan motors:


  • Measurement of no-load characteristic (recording of no-load current and no-load power at differing voltage)

  • Measurement of short circuit characteristic (recording of short circuit current and short circuit power at differing voltage)

  • Determination of polarization index of stator winding

  • Noise measurement (only at no load)

  • System/routine/type test of asynchronous fan motors



desert cooler fan motor test air cooler fan motor factory manufacturers suppliers


The routine test for asynchronous capacitor start fan motors contains the following test steps:

  • Visual inspection

  • Resistance measurement of stator winding at ambient temperature

  • Insulation resistance measurement of stator winding and accessories

  • High-voltage check of stator winding

  • Rotational direction check

  • No-load check at rated voltage

  • Short-circuit test at partial voltage

  • Check of fan motor accessories

  • Measurement of ripple voltage at rated voltage, rated frequency, and no-load speed

  • Creation of test report


In addition, the following optional tests are possible for asynchronous fan motors:


  • Measurement of no-load characteristic (recording of no-load current and no-load power at differing voltage)

  • Measurement of short circuit characteristic (recording of short circuit current and short circuit power at differing voltage)

  • Determination of polarization index of stator winding

  • Noise measurement (only at no load)

  • Type testing of asynchronous fan motors, with heat run


Air Conditioner Fan Motor Applications


CPMDJ offers you a complete line of HVAC motors, which is designed to operate in the harshest applications while reducing total cost of ownership. Our fan motors can be used in a variety of applications including air cooler fan motors, air conditioner fan motors, indoor fan motors, outdoor fan motors, window AC fan motors, condenser fan motors, general purpose fan motors, fan coil motors, heat pump fan motors , resin encapsulated motors and EC fan motors. We can also customize any fan motor version for specialized HVAC applications.


Air conditioner motor suppliers china - Changzhou Changpeng Motor Co., Ltd, is leading the fan motor factory & manufacturers whose motors can be applied in various kinds of air conditioners, commercial and residential.

window air conditioner fan motor wholesale price from china manufacturer

Service from Air Conditioiner Motor Supplier


Customized Air Conditioner Fan Motor Solutions


At Changzhou Changpeng Motor Co. Ltd, always you can find a person who will response to your questions about the best air conditioner blower motor solution for your application - quickly and competently. High-quality technical production and processing systems and the handling of qualified, experienced engineers and skilled workers guarantee you the highest motor standards. Additionally, all of our fan motor for air conditioner complies with current ISO standards.


24/7 After Service Availability

As a air conditioner fan motor factory & manufacturer & supplier for HVAC applications, Changpeng Motor Co., Ltd offers our customers further important plus points except focusing on fan motor quality. One of our focal points is the fast delivery of air conditioner motor replacement - including special designs. Not many air conditioner fan motor suppliers & manufacturers are able to claim that they can supply brand-new fan motors from their own ranges but also the OEM replacement motor of other brands within just a few days.

Flexible machining from our air conditioner fan motor manufacturer allows us to achieve exceptional response times. CPMDJ customers around the world appreciate our fast delivery service. Try us out! Team of experts from Changpeng Motor Co., Ltd will help you to find the right air conditioner motors for your HVAC application.


24-hour emergency hotline


CPMDJ provides a 24-hour hotline for our air conditioner fan motor customers. You can use it to reach us around the clock in the case of a pressing operational disruption. With CPMDJ, you can depend on an air conditioner fan motor factory & manufacturer & supplier who can supply fan motors for air conditioners with various voltages and outputs even outside normal working hours - all around the world.


service from changpeng motor for air conditioner motor air cooler motor fan coil motor fan motor
