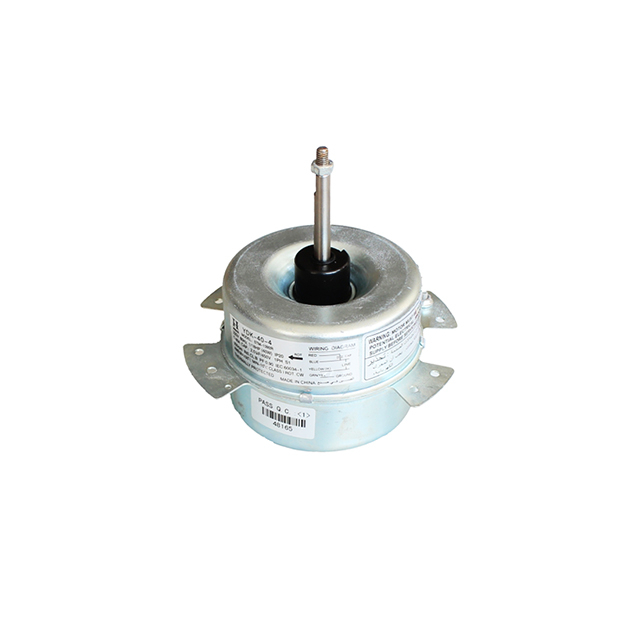

YDK-40-4 Air Conditioner External Motor Fan Motor Outdoor Fan Motor

Outdoor Fan Motor
Thermal Protection: Automatic
Outdoor ac fan motor Phase: 1
Maximum Ambient Temperature: 70° C
Outdoor fan motor for ac Dia:95/120/140mm
Insulation Class of outdoor ac unit fan motor: B
Frequency of air con outdoor fan motor: 50Hz/ 60Hz
Voltage of outdoor condenser fan motor: 208-240V
Permanent Split Capacitor (PSC) ac outdoor unit fan motor

  • YDK-40-4

  • CPMDJ

Availability:
Quantity:

Product Description

outdoor fan motor factory air conditioner fan motor manufacturers hvac motor suppliers


CPMDJ's extensive line of general purpose outdoor fan motors are mostly in steel housings. Designed for "universal" use means these outdoor AC fan motors can be used in many air conditioning applications. These AC outdoor fan motors are available in designs ranging from 5W to 1100W for applications using only single phase power. Available in standard foot mount configurations.


The need for a suitable outdoor fan motor for ac is important to prevent premature failure of the outdoor AC unit fan motor, which can lead to high maintenance costs or worse - air conditioner downtime.

CPMDJ, fan motor manufacturer and factory and supplier of outdoor condenser fan motors, always maintain high quality, low temperature rise, low vibration. Want to know split ac outdoor unit fan motor price? Contact us now!


Changzhou Changpeng Motor Co.,Ltd is committed to providing customers with the best value and reliability. CPMDJ helps the HVAC industry and applications achieve high efficiency and energy savings. CPMDJ's outdoor AC fan motor is designed to operate reliably with low lifecycle costs, no matter how challenging the process or application is. Every year, thousands of customers choose to trust CPMDJ. Your success is our success, and we partner with you every step of the way to deliver outdoor AC unit fan motor that exceed your expectations. We offer a simplified approach to delivering industry-specific solutions, including next-generation AC outdoor fan motor, shorter lead times, and outperforming other fan motor manufacturers with faster, more efficient output and support services Ability.


Outdoor Unit Fan Motor Type


Model Voltage(V) Frequency(Hz) Output(W) Speed(RPM) Capacitor(μF)
YDK95-25-6 208-230 50/60 25 880 2.5
YDK95-35-6 208-230 50/60 35 880 3
YDK95-45-6 208-230 50/60 45 880 3.5
YDK120-60-6 208-230 50/60 60 850 4
YDK139-150-6 208-230 50/60 150 900 10
YDK139-250-6 208-230 50/60 250 900 10


Outdoor AC Fan Motor Structure


AC outdoor fan motor is not that complicated, referring to its structure. Outdoor fan motor for ac from CPMDJ consist of a stator and contain a rotating rotor inside, which is surrounded by pole-pieces. All our outdoor ac unit fan motors comply with the appropriate International Standards as far as: air conditioner outdoor unit motor output, outdoor condenser fan motor performance and dimensions of fan motor for outdoor AC. Outdoor fan motor for air conditioner is the main component. As a well trusted fan motor factory, manufacturer & supplier, Changzhou Changpeng Motor Co., Ltd was initially founded in 2005 as an electric fan motor workshop. In 2009, CPMDJ became the fan motor manufacturer & factory to manufacture HVAC motors in China. Today, CPMDJ manufactures ac outdoor unit fan motors, indoor fan motors, fan coil motors, cooler motors, condenser fan motors and other HVAC motor products.


Features of Outdoor Condenser Fan Motor


1. Single phase outdoor ac fan motor with steel housing, designed for cooling system, air conditioner unit etc., suit for hot weather environments.

2. High quality air conditioner outdoor unit fan motor with excellent insulation and heat transmission properties.

3. Nice appearance, high starting torque, low starting current, smooth turning, low temperature rise, low vibration, low noise and great overload performance.

4. Saving energy outdoor fan motor for air conditioner, higher efficiency outdoor ac fan motor replacement.

5. Long life Motor Fan Outdoor AC which quipped with overheating protection, good Protection against Humidity.

6. Split ac outdoor fan motor models are with power of 25W, 30W, 45W, 60W, 80W,100W, 120W, 150W, 180W, 200W, 250W, 300W, 750W, 1100W & 1/5HP, 1/3HP, 1/2HP, 1/5HP, 3/4HP, 1HP.

7. Special Split AC outdoor Blower Fan Motor can be designed according to customer's requirement.

8. Our outdoor fan motor air conditioner is wildly used in market of Saudi Arabia, UAE, Dubai, Bahrain, Iraq, Sudan, Iran, Kuwait, Jordan, Oman, Yemen, etc.


Air Conditioner Motor Suppliers & Manufacturers


Outdoor condenser fan motor, is a kind of HVAC motor. This kind of outdodor ac fan motor is specifically engineered to keep air handling systems running smoothly, quietly and efficiently, which means better system reliability and performance with less maintenance. CPMDJ offers a complete line of HVAC fan motors designed to perform in the harshest applications while lowering total cost of ownership. We have outdoor fan motor available with air conditioner outdoor unit, ac outdoor fan motor for ceiling air conditioners, window air conditioners, also cooler fan motors, condenser fan motors, universal fan motors and fan coil motors and more. We can also build custom versions of any fan motor for specialized HVAC applications.


Outdoor Condenser Fan Motor Manufacturers & Factory & Suppliers


If you are seeking for outdoor fan motor manufacturers & suppliers china, you have come to the right air conditioner outdoor unit fan motor website. OR, if you want to know outdoor fan motor air conditioner price, please just feel free to contact CPMDJ, the fan motor supplier china. Refer to split AC outdoor fan motor type, our fan motors are asynchronous universal fan motors, on the other hand, is in a separate AC motor class because of the differences in design and operational characteristics. Changzhou Changpeng Motor Co., Ltd offers a robust catalog of outdoor unit fan motor made by our fan motor factory & manufacturers that can be tailored to your exact specifications of hvac fan motors. Our motor for outdoor fan is much popular in the market of Saudi Arabia, UAE, Dubai, Bahrain, Iraq, Sudan, Iran, Kuwait, Jordan, Oman, Yemen, etc.


CPMDJ CHANGZHOU CHANGPENG MOTOR CO.,LTD FAN MOTOR SUPPLIER FACTORY MANUFACTURERS SUPPLIERS -HVACFANMOTOR.COM


Outdoor fan motor manufacturing processes


To offer such a wide range of ac outdoor unit fan motor, CPMDJ expent huge manual work, skill and years of experience. Furthermore, Changzhou Changpeng Motor Co., Ltd has dipping equipment and drying kilns with shaft heights up to 800 mm, an in-house welding shop for flexible production of special components and custom welding designs, VPI dipping equipment and experienced specialists who truly understand their processes. This is how CPMDJ guarantee you the high quality, reliability and durability of motor fan ac outdoor.


1. STATOR CORE & ROTOR CORE


Stator core and rotor core for fan motor from air conditioner motor manufacturers are built up of thin punched laminations of Silicon Steel, its stator laminations and rotor laminations are made by high speed punch machine which is invested by our own, and this plays a vital role in quality of ac fan motor. Over 10 Million press strokes per day allows output of over 100 Tons finished stator / rotor core laminations each day.

stator-core-and-rotor-core-for-fan-motor for air cooler motor factory manufacturers suppliers
motor-manufacturing-processes coil winding for air cooler motor factory manufacturers suppliers

2. COIL WINDING


Professional in the outdoor condenser fan motor technology, team from fan motor manufacturers has extensive experience working with both copper and aluminium wire in various forms to provide coil winding solutions. Our broad customer base demands that we cannot only supply our standard range of ac outdoor fan motor but also have the capability to provide custom solutions to solve challenges others can't. Contact your fan motor suppliers now!

3. STATOR ASSEMBLY


Changpeng Motor Co., Ltd, china fan motor manufacturer, has specialized in outdoor fan motor for ac technology, stator assembling can be solved by our own professonal assembly technique. It meets the requirements of series production in ac fan motor, condenser fan motor, evaporator fan motor and other fan motor for ac unit. We develop and examine the entire process chain - from slot insulation to impregnating the stator and test.

motor-manufacturing-processes stator assembly for air cooler motor factory manufacturers suppliers
rotor-assembly-of-fan-motor from fan motor manufacturers suppliers factory

4. ROTOR ASSEMBLY


Rotor assembly is critical to outdoor fan motors air conditioners in a variety of industries and applications, like condenser, air conditioner, evaporator etc. CPMDJ, provides high quality silicon steel material to create professional and high quality rotor assembly for all AC fan motors. A rotor assembly of ac fan motor normally includes a cylindrically shaped shaft, a processed rotor iron core and a bearing.

5. FAN MOTOR SHAFT


Motor shaft is the main component in electric fan motor. The size of the shaft significantly affects the torque in fan motor. In addition to the need to mount the rotor and a variety of attachments, like bearing, the model of the motor shaft is based on the cooling concept selection of the electric device. CPMDJ, china ac outdoor fan motor manufacturer always offer you high quality shaft as air conditioner fan motor parts.

motor-shaft for air cooler motor factory manufacturers suppliers
fan motor test in fan motor manufacturer suppliers manufacturers - cpmdj

6. MOTOR ASSEMBLY & TESTING


Motor assembly includes assembling stator assembly, rotor assembly and end cover assembly with front cover. Testing of outdoor ac unit fan motor from air conditioner motor suppliers china, Changpeng Motor, cover the whole areas from stator insulation test, electronic integrated test bench for winding inserting, motor integrated test bench, motor performance test, noise test and appearance detection through to dynamometer for high performance fan  motor testing.


Outdoor unit fan motors meet most demanding quality requirements


As a fan motor factory & manufacturer, CPMDJ offers air cooler motors, air conditioner fan motors, indoor fan motors, outdoor fan motors, window AC fan motors, condenser fan motors, general purpose fan motors, fan coil motors, heat pump fan motors, resin Packing motors, EC fan motors, AC centrifugal fans and EC centrifugal fans. We quickly and reliably meet your custom requirements. You can always rely on the proven CPMDJ quality. High-quality technical production and processing plants, as well as the handling of qualified and experienced engineers and specialists ensure the highest standards of air cooler motors. To maintain quality standards, Changpeng Motor has introduced a quality management system.


Needless to say, our outdoor ac unit fan motor meets the requirements of international standards and state-of-the-art technology. This is how we ensure global use and durability of ac fan motors.

Be Agency of Fan Motor Factory


Why be our agency of fan motor?


As a prominent and leading fan motor suppliers & manufacturers china, Changpeng motor is willing to open worldwide market by agency. Be our agency, you can extend your business fast for your fan motors at the competitive price, stable qualtity and excellent after service. Contact your air conditioner fan motor factory to get outdoor fan motor air conditioner price now!


be agency of china fan motor manfuacturers factory suppliers- changpeng motor

Air Conditioner Motor Test & Applications


Routine testing and type tests for all AC fan motor

Process flow - routine, type, and system testing


The type test for asynchronous fan motors contains the following test steps:

  • Visual inspection

  • Resistance measurement of stator winding at ambient temperature

  • Insulation resistance measurement of stator winding and accessories

  • High-voltage check of stator winding

  • Rotational direction check

  • No-load check at partial voltage

  • Heating test under load

  • Measurement of load characteristic (25%, 50%, 75%, 100%, and 125% load)

  • Bearing heating check at no load and rated speed (only for friction-type bearing machines)

  • Check of fan motor accessories

  • Measurement of ripple voltage at rated voltage, rated frequency, and no-load speed

  • Creation of test report


In addition, the following optional tests are possible for asynchronous fan motors:


  • Measurement of no-load characteristic (recording of no-load current and no-load power at differing voltage)

  • Measurement of short circuit characteristic (recording of short circuit current and short circuit power at differing voltage)

  • Determination of polarization index of stator winding

  • Noise measurement (only at no load)

  • System/routine/type test of asynchronous fan motors



desert cooler fan motor test air cooler fan motor factory manufacturers suppliers


The routine test for asynchronous capacitor start fan motors contains the following test steps:

  • Visual inspection

  • Resistance measurement of stator winding at ambient temperature

  • Insulation resistance measurement of stator winding and accessories

  • High-voltage check of stator winding

  • Rotational direction check

  • No-load check at rated voltage

  • Short-circuit test at partial voltage

  • Check of fan motor accessories

  • Measurement of ripple voltage at rated voltage, rated frequency, and no-load speed

  • Creation of test report


In addition, the following optional tests are possible for asynchronous fan motors:


  • Measurement of no-load characteristic (recording of no-load current and no-load power at differing voltage)

  • Measurement of short circuit characteristic (recording of short circuit current and short circuit power at differing voltage)

  • Determination of polarization index of stator winding

  • Noise measurement (only at no load)

  • Type testing of asynchronous fan motors, with heat run


Outdoor Fan Motor Applications


CPMDJ offers you a complete line of HVAC motors, which is designed to operate in the harshest applications while reducing total cost of ownership. Our fan motors can be used in a variety of applications including air cooler fan motors, air conditioner fan motors, indoor fan motors, outdoor fan motors, window AC fan motors, condenser fan motors, general purpose fan motors, fan coil motors, heat pump fan motors , resin encapsulated motors and EC fan motors. We can also customize any fan motor version for specialized HVAC applications.


Air conditioner motor manufacturers & suppliers china - Changzhou Changpeng Motor Co., Ltd, is leading the fan motor factory & manufacturers whose motors can be applied in various kinds of air conditioners, commercial and residential.

window air conditioner fan motor wholesale price from china manufacturer

Service from Air Conditioiner Motor Supplier


Customized Air Conditioner Outdoor Fan Motor Solutions


At Changzhou Changpeng Motor Co. Ltd, always you can find a person who will response to your questions about the best outdoor ac fan motor solution for your application - quickly and competently. High-quality technical production and processing systems and the handling of qualified, experienced engineers and skilled workers guarantee you the highest motor standards. Additionally, all of our ac outdoor fan motor complies with current ISO standards.


24/7 After Service Availability


As a fan motor factory & manufacturer & supplier for HVAC applications, Changpeng Motor Co., Ltd offers our customers further important plus points except focusing on fan motor quality. One of our focal points is the fast delivery of outdoor ac fan motor replacement - including special designs. Not many air conditioner fan motor suppliers & manufacturers are able to claim that they can supply brand-new fan motors from their own ranges but also the OEM replacement motor of other brands within just a few days.

Flexible machining from our fan motor manufacturer allows us to achieve exceptional response times. CPMDJ customers around the world appreciate our fast delivery service. Try us out! Team of experts from Changpeng Motor Co., Ltd will help you to find the right outdoor fan motor for ac for your HVAC application.


24-hour emergency hotline


CPMDJ provides a 24-hour hotline for our outdoor ac unit fan motor customers. You can use it to reach us around the clock in the case of a pressing operational disruption. With CPMDJ, you can depend on an outdoor fan motor factory & manufacturer & supplier who can supply outdoor condenser fan motor with various voltages and outputs even outside normal working hours - all around the world.
