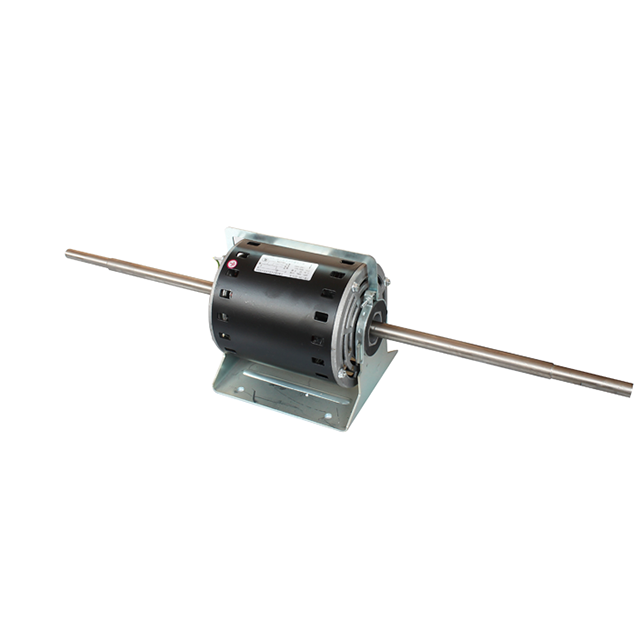

YSK139-750-6 Double Shaft 3 Speed Fan Coil Unit Motor

Electric fan coil motor for air conditioner from china manufacturer & factory, is mainly used for fan coil units or central air conditioning. Because the fan coil motor is energy-saving and environmentally friendly, it is also called environmental protection fan coil unit motor. Changzhou Changpeng Motor Co., Ltd. designed and produced high-quality coil fan motor, which has good heat dissipation and protection, stable low temperature rise, waterproof and moisture-proof, beautiful and durable.

As the key component for central air conditioning, fan coil motors drive the fan blade of fan coil unit. Fan coil unit motors must be running well for the central air conditioner unit to do its job. This is important for moving hot air to the outside of the building, as well as blowing cool air through the ductwork and into the rooms. CHANGZHOU CHANGPENG MOTOR CO.,LTD is the leading asynchronous single phase capacitor start fan coil motors factory & supplier.

Models of Fan Coil Motors

Features of Fan Motor for Fan Coil Units

1. Single-phase fan coil motors with steel housing, designed for cooling system, air conditioner unit etc., suit for hot weather environments.

2. High quality coil fan motor with excellent insulation and heat transmission properties.

3. Nice appearance, high starting torque, low starting current, smooth turning, low temperature rise, low vibration, low noise and great overload performance.

4. Saving energy fan coil unit motors, higher efficiency coil fan motor.

5. Long life fan coil motor replacement which quipped with overheating protection, good Protection against Humidity.

6. Fan coil unit motor replacement are with power of 25W, 30W, 45W, 60W, 80W,100W, 120W, 150W, 180W, 200W, 250W, 300W, 750W, 1100W & 1/5HP, 1/3HP, 1/2HP, 1/5HP, 3/4HP, 1HP.

7. Special fan coil motors can be designed according to customer's requirement.

Fan Coil Unit Motor Structure

Fan coil unit motor is not very complicated in construction. fan motor for fan coil unit from CPMDJ consists of a stator and contain a rotating rotor inside, which is surrounded by pole-pieces. All our central air conditioning fan coil motor and fan coil unit motor replacement comply with the appropriate International Standards as far as: coil fan motor output, fan coil motor performance and motor coil fan dimensions.

Fan Coil Motor Factory

ac electric fan coil motor for air conditioner manufacturers & suppliers & factory, bldc motor for fan-coil air conditioning manufacturers & suppliers & factory, Changzhou Changpeng Motor Co.,Ltd aims to produce fan coil motors that can accommodate each of our customer's different needs. Aside from being a leading fan motor manufacturer & supplier, we also produce various fan coil unit motors that are ideal for HVAC industries. We have pre-designed fancoil motor that you can choose from but if you have special requirements for your fan coil blower motor, we can customize fan coil motor for you. We can design them to match your branding and help you boost your sales.

We assign teams of design, technician and manufacturing experts to each of your order. They will work with you to implement any coil fan motor design ideas and needs you have and bring them to reality. We additionally offer free samples for you to test and approve before we begin manufacturing your personalized fan coil blower motor.

Fan coil motor manufacturing processes

To offer such a wide range of fan coil unit motor, central air conditioning motor, FCU fan motor, CPMDJ expent huge manual work, skill and years of experience. Furthermore, Changzhou Changpeng Motor Co., Ltd has dipping equipment and drying kilns with shaft heights up to 800 mm, an in-house welding shop for flexible production of special components and custom welding designs, VPI dipping equipment and experienced specialists who truly understand their processes. This is how CPMDJ guarantee you the high quality, reliability and durability of coil fan motor.

1. STATOR CORE & ROTOR CORE Stator core and rotor core for fan motor from fan coil motor manufacturers are built up of thin punched laminations of Silicon Steel, its stator laminations and rotor laminations are made by high speed punch machine which is invested by our own, and this plays a vital role in quality of ac fan motor. Over 10 Million press strokes per day allows output of over 100 Tons finished stator / rotor core laminations each day.
	2. COIL WINDING Professional in the coil fan motor technology, team from fan motor for fan coil units manufacturers has extensive experience working with both copper and aluminium wire in various forms to provide coil winding solutions. Our broad customer base demands that we cannot only supply our standard range of fan coil unit motor but also have the capability to provide custom solutions to solve challenges others can't. Contact your fan motor manufacturers now!
3. STATOR ASSEMBLY Changpeng Motor Co., Ltd, china motor for fan-coil air conditioning supplier, has specialized in fancoil motor technology, stator assembling can be solved by our own professonal assembly technique. It meets the requirements of series production in ac fan motor, air conditioner motor, condenser fan motor, evaporator fan motor and other fan motor for ac unit. We develop and examine the entire process chain - from slot insulation to impregnating the stator and test.
	4. ROTOR ASSEMBLY Rotor assembly is critical to fan motors for fan coil units in a variety of industries and applications, like condenser, air conditioner, evaporator etc. CPMDJ, fan motor for fan coil units supplier provides high quality silicon steel material to create professional and high quality rotor assembly for all AC fan motors. A rotor assembly of ac fan motor normally includes a cylindrically shaped shaft, a processed rotor iron core and a bearing.
5. FAN MOTOR SHAFT Motor shaft is the main component in electric fan motor. The size of the shaft significantly affects the torque in fan motor. In addition to the need to mount the rotor and a variety of attachments, like bearing, the model of the motor shaft is based on the cooling concept selection of the electric device. CPMDJ, motor for fan-coil air conditioning manufacturers & suppliers always offer you high quality shaft as air conditioner fan motor parts.
	6. MOTOR ASSEMBLY & TESTING Motor assembly includes assembling stator assembly, rotor assembly and end cover assembly with front cover. Testing of fan coil motor from fan motor for fan coil units from china manufacturer, Changpeng Motor, cover the whole areas from stator insulation test, electronic integrated test bench for winding inserting, motor integrated test bench, motor performance test, noise test and appearance detection through to dynamometer for high performance fan  motor testing.

Fan coil motors meet the most demanding quality requirements

As a fan coil motor factory & manufacturer, CPMDJ offers air cooler motors, air conditioner fan motors, indoor fan motors, outdoor fan motors, window AC fan motors, condenser fan motors, general purpose fan motors, fan coil motors, heat pump fan motors, resin Packing motors, EC fan motors, AC centrifugal fans and EC centrifugal fans. We quickly and reliably meet your custom requirements. You can always rely on the proven CPMDJ quality. High-quality technical production and processing plants, as well as the handling of qualified and experienced engineers and specialists ensure the highest standards of air cooler motors. To maintain quality standards, Changpeng Motor has introduced a quality management system.

Needless to say, our fan coil unit motor meets the requirements of international standards and state-of-the-art technology. This is how we ensure global use and durability of ac fan motors.

Why be our agency of fan motor?

As a prominent and leading fan coil motor suppliers & manufacturers china, Changpeng motor is willing to open worldwide market by agency. Be our agency, you can extend your business fast for your fan motors at the competitive price, stable qualtity and excellent after service. Contact your fan coil motor factory to get fan coil motor price now!

Routine testing and type tests for all AC fan motor

Process flow - routine, type, and system testing

The type test for asynchronous fan motors contains the following test steps:

• Visual inspection

• Resistance measurement of stator winding at ambient temperature

• Insulation resistance measurement of stator winding and accessories

• High-voltage check of stator winding

• Rotational direction check

• No-load check at partial voltage

• Heating test under load

• Measurement of load characteristic (25%, 50%, 75%, 100%, and 125% load)

• Bearing heating check at no load and rated speed (only for friction-type bearing machines)

• Check of fan motor accessories

• Measurement of ripple voltage at rated voltage, rated frequency, and no-load speed

• Creation of test report

In addition, the following optional tests are possible for asynchronous fan motors:

• Measurement of no-load characteristic (recording of no-load current and no-load power at differing voltage)

• Measurement of short circuit characteristic (recording of short circuit current and short circuit power at differing voltage)

• Determination of polarization index of stator winding

• Noise measurement (only at no load)

• System/routine/type test of asynchronous fan motors

The routine test for asynchronous capacitor start fan motors contains the following test steps:

• Visual inspection

• Resistance measurement of stator winding at ambient temperature

• Insulation resistance measurement of stator winding and accessories

• High-voltage check of stator winding

• Rotational direction check

• No-load check at rated voltage

• Short-circuit test at partial voltage

• Check of fan motor accessories

• Measurement of ripple voltage at rated voltage, rated frequency, and no-load speed

• Creation of test report

In addition, the following optional tests are possible for asynchronous fan motors:

• Measurement of no-load characteristic (recording of no-load current and no-load power at differing voltage)

• Measurement of short circuit characteristic (recording of short circuit current and short circuit power at differing voltage)

• Determination of polarization index of stator winding

• Noise measurement (only at no load)

• Type testing of asynchronous fan motors, with heat run

Fan Coil Unit Motor Applications

CPMDJ offers you a complete line of HVAC motors, which is designed to operate in the harshest applications while reducing total cost of ownership. Our fan motors can be used in a variety of applications including air cooler fan motors, air conditioner fan motors, indoor fan motors, outdoor fan motors, window AC fan motors, condenser fan motors, general purpose fan motors, fan coil motors, heat pump fan motors , resin encapsulated motors and EC fan motors. We can also customize any fan motor version for specialized HVAC applications.

Fan coil motor factory & manufacturers & suppliers in china - Changzhou Changpeng Motor Co., Ltd, is leading the fan motor factory & manufacturers whose fan coil motors can be applied in various kinds of central air conditioners,fan coil units, commercial and residential.

Customized Coil Fan Motor Solutions

At Changzhou Changpeng Motor Co. Ltd, always you can find a person who will response to your questions about the best fan coil blower motor solution for your application - quickly and competently. High-quality technical production and processing systems and the handling of qualified, experienced engineers and skilled workers guarantee you the highest motor standards. Additionally, all of our fan motors for air conditioners complies with current ISO standards.

24/7 After Service Availability

As a motor for fan-coil air conditioning suppliers & factory & manufacturers, CPMDJ offers our customers further important plus points except focusing on fan motor quality. One of our focal points is the fast delivery of fan coil motor replacement - including special designs. Not many fan motor suppliers & manufacturers are able to claim that they can supply brand-new fan motors from their own ranges but also the OEM replacement motor of other brands within just a few days.

Flexible machining from our fan coil motor manufacturer & supplier & factory allows us to achieve exceptional response times. CPMDJ customers around the world appreciate our fast delivery service. Try us out! Team of experts from Changpeng Motor Co., Ltd will help you to find the right fan coil unit motors at reasonable fan coil motor price for your HVAC application.

24-hour emergency hotline

CPMDJ provides a 24-hour hotline for our coil fan motor customers. You can use it to reach us around the clock in the case of a pressing operational disruption. With CPMDJ, you can depend on an fan coil motor factory & manufacturer & supplier who can supply fan coil unit motors for air conditioners with various voltages and outputs even outside normal working hours - all around the world.
